Chairs and stools cart

• DESCRIPTION

- Folding chair trolley specially designed for handling Furnitrade folding chairs and stools.

- Wide angles at the base and different widths of side bars allow a large number of chairs and stools to be transported.

- Quick and easy to assemble | Weight: 20 kg

- 2 additional bars at mid-height to prevent tipping over to the side.

- Capacity :

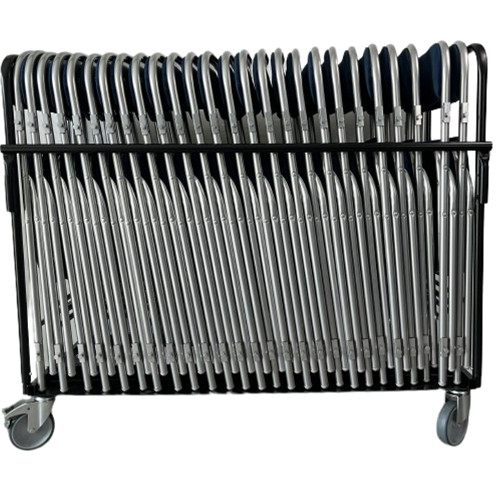

-26 PRESTIGES

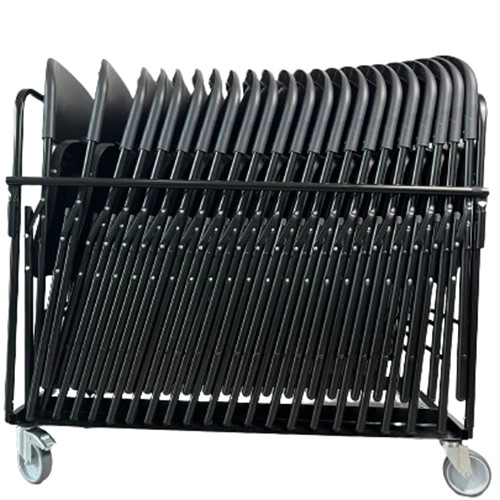

-22 JUMBOS

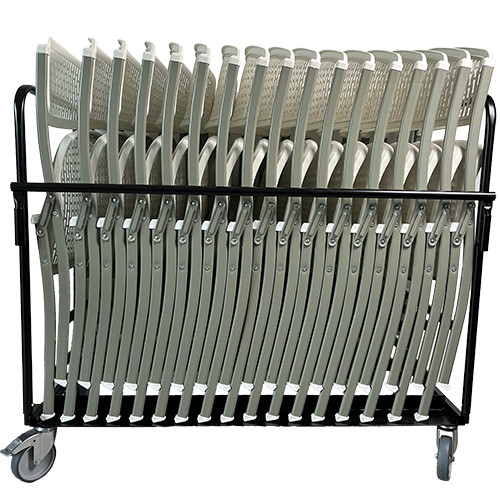

-17 NETS

-13 TBMONOS

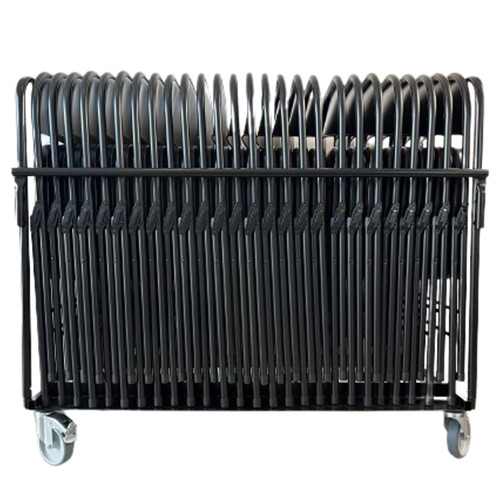

-24 METALS

-13 TBPLNOS

-22 chairs 2810; 80739 or 80681

- Chairs 80155

- chairs 80587

- chairs 80629

• STRUCTURE FINISHING AND PIETEMENT

Angle iron for chair legs
2 additional bars at mid-height (65 cm from the bottom bar) to prevent tipping to one side
Folding chairs slide out from the top of the trolley
19.5 x 19.5 mm square tube base and 23.95 mm Ø round tube base
Fitted with 4 swivel castors, 2 of which have brakes
Weight: 20 kg
Dimensions :
-Length external base: 128 cm
-Outside width: 52.5 cm
-Inside width: 37.6 cm
-(For chairs with leg spacing from 34 to 52.5 cm)
-Length of length bars: 129 cm
Height of U-shaped width bars (x2): 91.5 cm
Height floor/top of U-shaped side bars: 110 cm
Width of U-shaped side bars: 51 cm
-Distance between base and side bars: 67.5 cm
-Area for feet (x2) on base: 10 cm
-Wheel height (base/floor): 16.8 cm
End cap length on U-shaped width bars (x4): 10 cm
-Distance between side bars: 56.5 cm

Translated with DeepL.com (free version)

• DIMENSIONS ET LOGISTIQUES

Unfolded dimensions (Lxlxh)	128 x 52.5 x 110 cm
Folded dimensions (L x l x h)	N/A
Weight	20 kg
Pieces	1 pcs
Package	130 x 67 x 26.5 cm
Weight of the package	21.4 kg
Quantity per pallet	9
Capacity container - 20’	N/A
Capacity container - 40'	N/A
Capacity container - 40'HC'	N/A
